TPRO: multi-bank waterproof chargers

The TPRO multi-bank series is available in two and three bank configurations.  Each bank is electrically isolated allowing for series and parallel configurations in 24V and 36V applications. Charge balancing of each bank is accomplished by sensing each bank independently and charging appropriately. With a wide operating temperature range and UL/CSA 1236 certification, this product is especially suited for high end industrial applications and severe environments. An LED display indicates charging and AC/DC status.



  • Intelligent three stage charger
  • UL/CSA 1236 certified
  • Isolated dual or triple bank
  • Demand sensing - output current is direct to the batteries that need it most
  • Spark-free hookup
  • Mode indicators
  • Low standby current
  • Reverse polarity protection
  • Over voltage and current protection
  • Over temperature protection
  • Rugged and waterproof
  • Fully encapsulated and hermetically sealed
  • 110 VAC or 220 VAC models







  110 VAC
  TPRO 220-1 12VDC @ 20 Amps manual spec sheet
  TPRO 320-1 12VDC @ 20 Amps manual spec sheet
  220 VAC

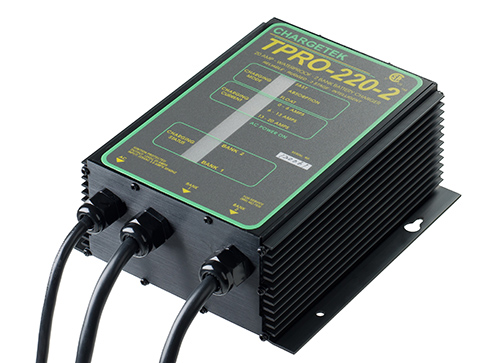

  TPRO 220-2 12VDC @ 20 Amps manual spec sheet
  TPRO-320-2 12VDC @ 20 Amps manual spec sheet
  O&M drawing for all TPRO models





Our products can be purchased from our distributors or directly from us. You can contact us at the phone number or email address below.






   Chargetek, Inc.

1860 Eastman Avenue Unit 109
   Ventura, CA 93003
   Phone:  (805) 482-7930
   Fax:  (805) 482-7936
   www.chargetek.com
