DPLC: DC input lithium battery chargers

The DPLC series is a rugged, intelligent and sophisticated 450 watt charger that can be programmed to charge lithium-ion (Li-ion) or lithium polymer (LiPo) batteries. With IEC and CE certification pending, universal DC input and a wide operating temperature range (-20°C to 70°C), this product is especially suited for high end industrial applications.

The DPLC optional status and control signals can be user defined. An informative LED display indicates charging conditions, battery and DC status. The charger is controlled by an embedded microcontroller that contains software developed by Chargetek, allowing for application specific customization. Simplified fixed voltage/current chargers are also available.

The charger is available in a number of output voltage/current variations with optional SMBus Level 2, SMBus Level 3 communication and controls. Models are available for typical 2S, 4S, 8S, 10S and 12S applications, as well as custom configurations for less demanding applications. The charger is easily mountable in two orientations.


  • Optimal charge algorithm
  • DC input: 12VDC - 500VDC
  • LED status indicators
  • Low standby battery drain
  • SMBus Level 2 or Level 3 operation
  • Optional relay status signals
  • Optional low power bias supply
  • Reverse polarity protected
  • Over temperature protected
  • Low noise / variable speed fan
  • Over current / voltage protected
  • Optional status / control serial interface
  • Two year warranty




spec sheet

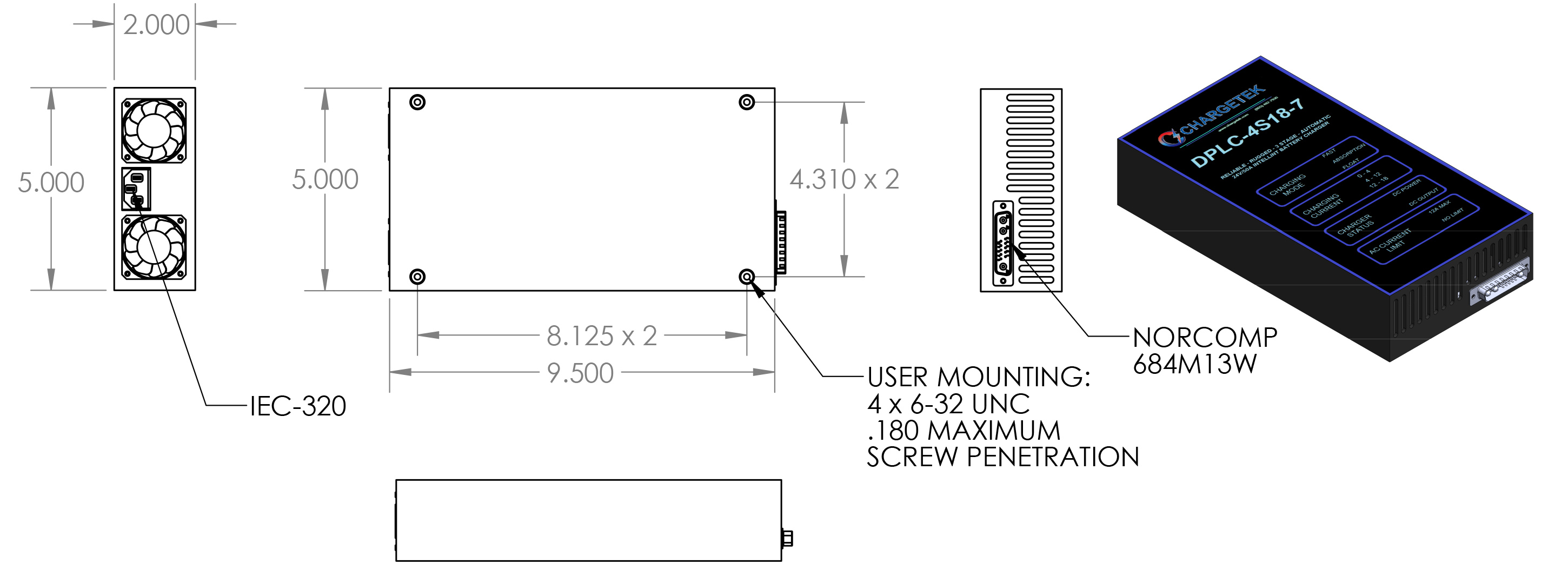

  O&M drawing for all DPLC models
