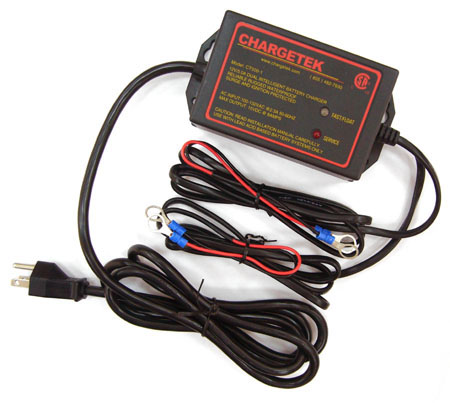

CT500: single and dual bank waterproof chargers

The CT500 product series is UL/CSA1236 certified, waterproof, versatile and extremely compact. Its unique design provides solutions for many demanding requirements. It is available in single and dual bank configurations. Each bank is electrically isolated for 12/24V battery systems. Demand sensing ensures charge balancing for 24V series configurations. The CT500 product line is particularly suited for storage, security, standby and remote applications.



  • Intelligent three stage charger
  • UL/CSA 1236 certified
  • Single or isolated dual bank
  • Spark-free hookup
  • Mode indicators
  • Low standby current
  • Reverse polarity protection
  • Over voltage and current protection
  • Over temperature protection
  • Rugged and waterproof
  • Fully encapsulated and hermetically sealed
  • 110 VAC or 220 VAC models







  110 VAC
  CT500-1 Dual 12VDC @ 5 Amps total manual spec sheet
  CT500-2 Single 24VDC @ 3 Amps manual spec sheet
  CT500-5 Single 12VDC @ 6 Amps manual spec sheet
  220 VAC
  CT500-3 Dual 12VDC @ 5 Amps total manual spec sheet
  CT500-4 Single 24VDC @ 3 Amps manual spec sheet
  CT500-6 Single 24VDC @ 3 Amps manual spec sheet

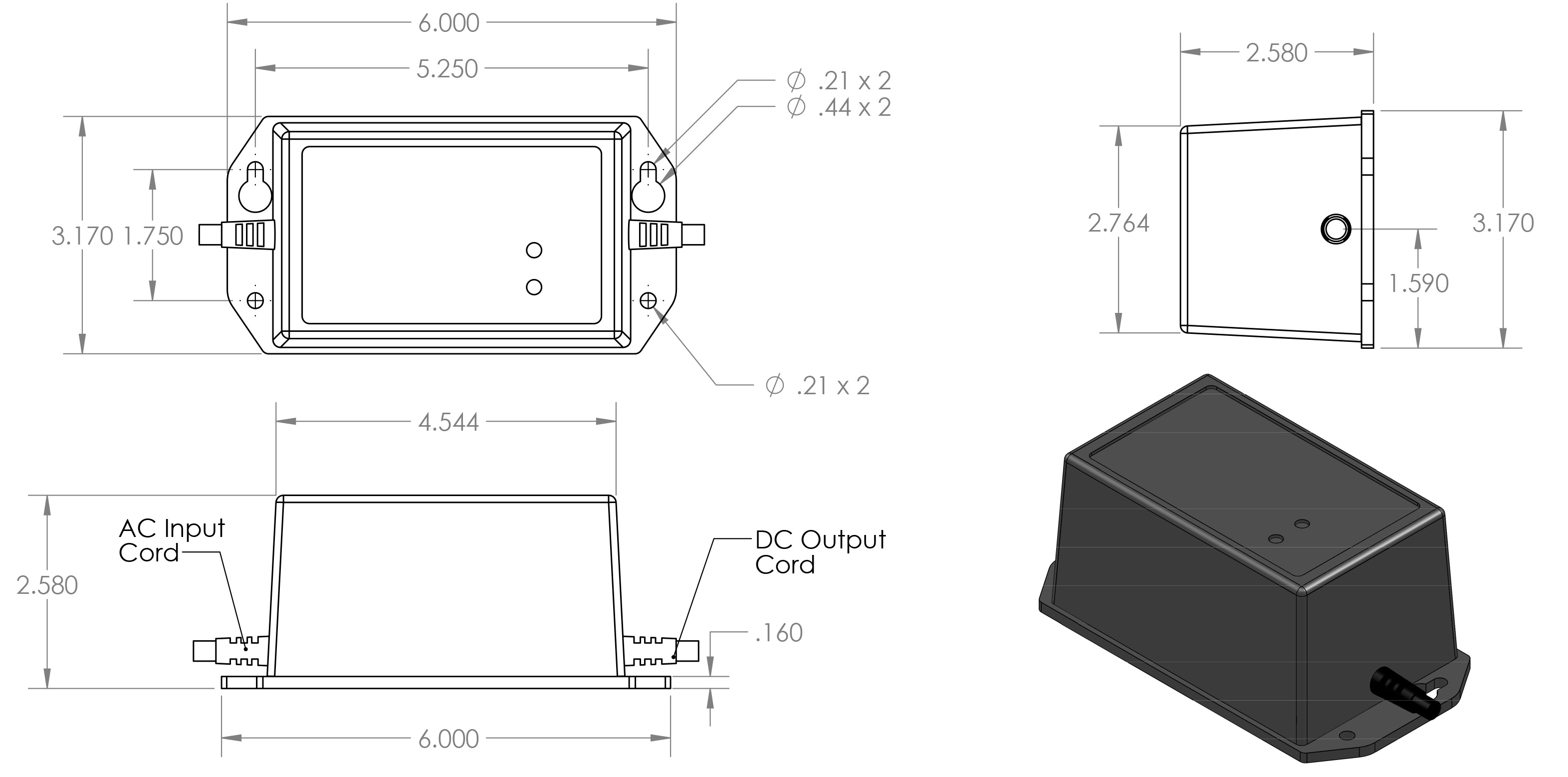

  O&M drawing for all CT 500 models
  Download IGS 3D model





Our products can be purchased from our distributors or directly from us. You can contact us at the phone number or email address below.





   Chargetek, Inc.

1860 Eastman Avenue Unit 109
   Ventura, CA 93003
   Phone:  (805) 482-7930
   Fax:  (805) 482-7936
   www.chargetek.com
