Ruggedized and reliable Lead, Lithium, LiPO AC/DC chargers with customizable & programmable algorithms...several digital and discrete communication, control and monitoring options...configurable input/output cabling and connectors
Chargetek offers several standard enclosure configurations to satisfy the majority of industrial and military environmental requirements for both the DC and AC products. A charger matching your requirements and quickly be identified following the steps below:
- Using the Find My Charger and Input Power Calculator will facilitate your charger selection and calculate input power requirements. The properties of each enclosure are depicted with a short text description given by hovering over the icons surrounding the mechanical drawings. Mechanical information including 2D and 3D CAD files are provided.
- To begin, choose the appropriate battery chemistry. Please note that the lead based category includes AGM, SLA, flooded, Odyssey. flooded, maintenance free and other lead based battery constructions
- The Find My Charger Calculator will calculate critical parameters to quickly and accurately select the most suitable product for your application. Hovering over each parameter will display the definitions and the data needed to be entered. Once you have made a selection, click on the appropriate enclosure and battery type icons to continue the selection process.
- Please consult with our support staff to review your selection and discuss any interface options. Visit the tools section to review the many communication and control options available.
AC/DC NEW PRODUCT INTRODUCTIONS
LSE
power levels up to 50 W
The juice pumper line satisfies power requirements up to 50 watts depending upon the input and output definitions. It can be programmed for all battery types, it is hermetically sealed. and is impervious to pollutants and contaminants. It is available in both plastic and metal enclosures depending upon environmental considerations. The Juice Pumper is available in a standard 110 or 220 V AC input, universal wide range (85 – 264VAC) or as a DC input product. Wireless capability can be added upon request.
Input transient protection
Reverse Polarity Protection
Fully Encapsulated
and Hermetically Sealed
Low Standby
Current
Charging and Protection
Mode Indicators
Safety Agency Certification
Easily Installed
Communications
Extended Temp. Range
Input Transient Protection.
Input power transient protection prevents damage to the charger in the event of high voltage transients. These events are usually caused by inclement weather or heavy machinery on the same power line. The duration of the transient typically exists for tens of microseconds and generate thousands of joules of energy.
Reverse polarity protection
Internal reverse polarity protection circuitry prevents dangerous current flow when the battery is connected in the reverse direction. No external or internal fuses should blow when this occurs since the reverse current is in the milliamp range.
Fully encapsulated and hermetically sealed
The product is fully encapsulated with UL approved thermally conductive and flame retardant 94-V0 material. The encapsulation protects the product from contaminants such as water, dust and humidity. It also provides inherent vibration resistance since the internal components are incapable of movement.
Low standby current
The standby current is very low (see spec sheets for more details). This drain is substantially lower on newer units although still suitable and most applications since the drain only occurs during AC power failure.
Charging and Protection
Standard and custom charge algorithms for many battery chemistries are available. Charging voltage and current is precisely controlled to insure an efficient and reliable recharging process. Over voltage /current/ temperature protection is standard on all models.
Mode Indicators
Standard units have three LEDs indicating various charging and status conditions.
Safety Agency Certified.
This product is certified to UL/CSA 1236 which is a stringent Marine specification. Please reference this link.....(link)
Easily Installed
The charger can be used as a portable unit or permanently mounted on board. Encapsulation prevents internal components from shaking loose during vibration and movement. External mounting strap should be added or extreme vibration conditions.
Communications
Several communications options are available and are explained in the tools section under control and monitoring.
Extended Temperature Range
An extended temperature range beyond the stated data sheet limits is available upon request.
3D PDF

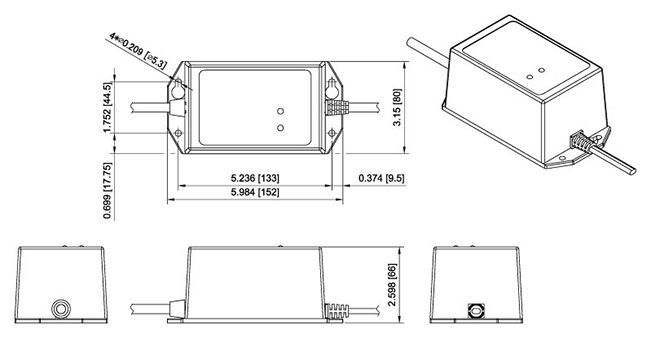

Outline and Mounting
MCF
power levels up to 800 W
The product line provides a versatile platform to provide one of the most configurable charger lines available on the market today. It can be programmed for all battery types and It is easily configured to satisfy almost any applications due to the internal modularity of the product. The APIC line is available in a standard 110 or 220 V AC input, universal wide range (85 – 264VAC) with power factor correction (.99) or a DC input product. Power ranges extend from 500 watts to 800 watts depending upon the input and output definitions. Although the unit is fan cooled, conformal coating protects the PCBs from external contaminants and the fan is temperature controlled. This product has an optional interface board that can transmit and receive an RS-232, and RJ-45 and also Ethernet as explained in the tools section.
Input transient protection
Reverse Polarity Protection
Fully Encapsulated
and Hermetically Sealed
Low Standby
Current
Charging and Protection
Mode Indicators
Safety Agency Certification
Easily Installed
Communications
Extended Temp. Range
Input Transient Protection.
Input power transient protection prevents damage to the charger in the event of high voltage transients. These events are usually caused by inclement weather or heavy machinery on the same power line. The duration of the transient typically exists for tens of microseconds and generate thousands of joules of energy.
Reverse polarity protection
Internal reverse polarity protection circuitry prevents dangerous current flow when the battery is connected in the reverse direction. No external or internal fuses should blow when this occurs since the reverse current is in the milliamp range.
Fully encapsulated and hermetically sealed
The product is fully encapsulated with UL approved thermally conductive and flame retardant 94-V0 material. The encapsulation protects the product from contaminants such as water, dust and humidity. It also provides inherent vibration resistance since the internal components are incapable of movement.
Low standby current
The standby current is very low (see spec sheets for more details). This drain is substantially lower on newer units although still suitable and most applications since the drain only occurs during AC power failure.
Charging and Protection
Standard and custom charge algorithms for many battery chemistries are available. Charging voltage and current is precisely controlled to insure an efficient and reliable recharging process. Over voltage /current/ temperature protection is standard on all models.
Mode Indicators
Standard units have three LEDs indicating various charging and status conditions.
Safety Agency Certified.
This product is certified to UL/CSA 1236 which is a stringent Marine specification. Please reference this link.....(link)
Easily Installed
The charger can be used as a portable unit or permanently mounted on board. Encapsulation prevents internal components from shaking loose during vibration and movement. External mounting strap should be added or extreme vibration conditions.
Communications
Several communications options are available and are explained in the tools section under control and monitoring.
Extended Temperature Range
An extended temperature range beyond the stated data sheet limits is available upon request.
3D PDF
Outline and Mounting
LME
power levels up to 200 W
The LME product line satisfies power requirements up to 200 watts using only convection cooling, depending upon the input and output definitions. It can be programmed for all battery types and is hermetically sealed making it impervious to pollutants and contaminants. The LME is available in a standard 110 or 220 V AC input, universal wide range (85 – 264VAC) or as a DC input product. Wireless capability and discrete signals can be added upon request.
Input transient protection
Reverse Polarity Protection
Fully Encapsulated
and Hermetically Sealed
Low Standby
Current
Charging and Protection
Mode Indicators
Safety Agency Certification
Easily Installed
Communications
Extended Temp. Range
Input Transient Protection.
Input power transient protection prevents damage to the charger in the event of high voltage transients. These events are usually caused by inclement weather or heavy machinery on the same power line. The duration of the transient typically exists for tens of microseconds and generate thousands of joules of energy.
Reverse polarity protection
Internal reverse polarity protection circuitry prevents dangerous current flow when the battery is connected in the reverse direction. No external or internal fuses should blow when this occurs since the reverse current is in the milliamp range.
Fully encapsulated and hermetically sealed
The product is fully encapsulated with UL approved thermally conductive and flame retardant 94-V0 material. The encapsulation protects the product from contaminants such as water, dust and humidity. It also provides inherent vibration resistance since the internal components are incapable of movement.
Low standby current
The standby current is very low (see spec sheets for more details). This drain is substantially lower on newer units although still suitable and most applications since the drain only occurs during AC power failure.
Charging and Protection
Standard and custom charge algorithms for many battery chemistries are available. Charging voltage and current is precisely controlled to insure an efficient and reliable recharging process. Over voltage /current/ temperature protection is standard on all models.
Mode Indicators
Standard units have three LEDs indicating various charging and status conditions.
Safety Agency Certified.
This product is certified to UL/CSA 1236 which is a stringent Marine specification. Please reference this link.....(link)
Easily Installed
The charger can be used as a portable unit or permanently mounted on board. Encapsulation prevents internal components from shaking loose during vibration and movement. External mounting strap should be added or extreme vibration conditions.
Communications
Several communications options are available and are explained in the tools section under control and monitoring.
Extended Temperature Range
An extended temperature range beyond the stated data sheet limits is available upon request.
Outline and Mounting
SFE
power levels up to 1000 watts
CB series will make it possible for charge that could generate products in the tens of kilowatts range with ease. Using the standard brick power levels are approximately 1000 W these can be configured in a backplane and a modular system to generate extremely high reliability and redundancy. With a cost structure that is unmatched in the industry, communications including ethernet GUI reporting and remote monitoring control HED based high-power Chargers will be extremely competitive in the forklift and material handling industries finish package will be extremely suited for industrial and military applications.
Input transient protection
Reverse Polarity Protection
Fully Encapsulated
and Hermetically Sealed
Low Standby
Current
Charging and Protection
Mode Indicators
Safety Agency Certification
Easily Installed
Communications
Extended Temp. Range
Input Transient Protection.
Input power transient protection prevents damage to the charger in the event of high voltage transients. These events are usually caused by inclement weather or heavy machinery on the same power line. The duration of the transient typically exists for tens of microseconds and generate thousands of joules of energy.
Reverse polarity protection
Internal reverse polarity protection circuitry prevents dangerous current flow when the battery is connected in the reverse direction. No external or internal fuses should blow when this occurs since the reverse current is in the milliamp range.
Fully encapsulated and hermetically sealed
The product is fully encapsulated with UL approved thermally conductive and flame retardant 94-V0 material. The encapsulation protects the product from contaminants such as water, dust and humidity. It also provides inherent vibration resistance since the internal components are incapable of movement.
Low standby current
The standby current is very low (see spec sheets for more details). This drain is substantially lower on newer units although still suitable and most applications since the drain only occurs during AC power failure.
Charging and Protection
Standard and custom charge algorithms for many battery chemistries are available. Charging voltage and current is precisely controlled to insure an efficient and reliable recharging process. Over voltage /current/ temperature protection is standard on all models.
Mode Indicators
Standard units have three LEDs indicating various charging and status conditions.
Safety Agency Certified.
This product is certified to UL/CSA 1236 which is a stringent Marine specification. Please reference this link.....(link)
Easily Installed
The charger can be used as a portable unit or permanently mounted on board. Encapsulation prevents internal components from shaking loose during vibration and movement. External mounting strap should be added or extreme vibration conditions.
Communications
Several communications options are available and are explained in the tools section under control and monitoring.
Extended Temperature Range
An extended temperature range beyond the stated data sheet limits is available upon request.
3D PDF
Outline and Mounting
MME
power levels up to 400 W
This product series is particularly well suited for battery storage, security, standby generators and many other standby and remote applications. This series is designed to be portable or permanently mounted on almost any type of vehicle such as lawn and garden tractors, snowmobiles, motorcycles, and personal watercraft. The chargers are available with quick disconnect DC cables for easy service and installation.
Input transient protection
Reverse Polarity Protection
Fully Encapsulated
and Hermetically Sealed
Low Standby
Current
Charging and Protection
Mode Indicators
Safety Agency Certification
Easily Installed
Communications
Extended Temp. Range
Input Transient Protection.
Input power transient protection prevents damage to the charger in the event of high voltage transients. These events are usually caused by inclement weather or heavy machinery on the same power line. The duration of the transient typically exists for tens of microseconds and generate thousands of joules of energy.
Reverse polarity protection
Internal reverse polarity protection circuitry prevents dangerous current flow when the battery is connected in the reverse direction. No external or internal fuses should blow when this occurs since the reverse current is in the milliamp range.
Fully encapsulated and hermetically sealed
The product is fully encapsulated with UL approved thermally conductive and flame retardant 94-V0 material. The encapsulation protects the product from contaminants such as water, dust and humidity. It also provides inherent vibration resistance since the internal components are incapable of movement.
Low standby current
The standby current is very low (see spec sheets for more details). This drain is substantially lower on newer units although still suitable and most applications since the drain only occurs during AC power failure.
Charging and Protection
Standard and custom charge algorithms for many battery chemistries are available. Charging voltage and current is precisely controlled to insure an efficient and reliable recharging process. Over voltage /current/ temperature protection is standard on all models.
Mode Indicators
Standard units have three LEDs indicating various charging and status conditions.
Safety Agency Certified.
This product is certified to UL/CSA 1236 which is a stringent Marine specification. Please reference this link.....(link)
Easily Installed
The charger can be used as a portable unit or permanently mounted on board. Encapsulation prevents internal components from shaking loose during vibration and movement. External mounting strap should be added or extreme vibration conditions.
Communications
Several communications options are available and are explained in the tools section under control and monitoring.
Extended Temperature Range
An extended temperature range beyond the stated data sheet limits is available upon request.
2D PDF
3D PDF
Outline and Mounting
LPC
power levels up to 85 watts
With a wide operating temperature range and UL/CSA1236 certification, the LPC product is especially suited for high end industrial applications and severe environments. This product series is versatile, rugged and waterproof. The LPC is factory programmable to accommodate several user defined charging algorithms. An LED display indicates charging and AC/DC status. There are also four optional user-defined signal/power relay contacts and long distance digital temperature compensation.
Input transient protection
Reverse Polarity Protection
Fully Encapsulated
and Hermetically Sealed
Low Standby
Current
Charging and Protection
Mode Indicators
Safety Agency Certification
Easily Installed
Communications
Extended Temp. Range
Input Transient Protection.
Input power transient protection prevents damage to the charger in the event of high voltage transients. These events are usually caused by inclement weather or heavy machinery on the same power line. The duration of the transient typically exists for tens of microseconds and generate thousands of joules of energy.
Reverse polarity protection
Internal reverse polarity protection circuitry prevents dangerous current flow when the battery is connected in the reverse direction. No external or internal fuses should blow when this occurs since the reverse current is in the milliamp range.
Fully encapsulated and hermetically sealed
The product is fully encapsulated with UL approved thermally conductive and flame retardant 94-V0 material. The encapsulation protects the product from contaminants such as water, dust and humidity. It also provides inherent vibration resistance since the internal components are incapable of movement.
Low standby current
The standby current is very low (see spec sheets for more details). This drain is substantially lower on newer units although still suitable and most applications since the drain only occurs during AC power failure.
Charging and Protection
Standard and custom charge algorithms for many battery chemistries are available. Charging voltage and current is precisely controlled to insure an efficient and reliable recharging process. Over voltage /current/ temperature protection is standard on all models.
Mode Indicators
Standard units have three LEDs indicating various charging and status conditions.
Safety Agency Certified.
This product is certified to UL/CSA 1236 which is a stringent Marine specification. Please reference this link.....(link)
Easily Installed
The charger can be used as a portable unit or permanently mounted on board. Encapsulation prevents internal components from shaking loose during vibration and movement. External mounting strap should be added or extreme vibration conditions.
Communications
Several communications options are available and are explained in the tools section under control and monitoring.
Extended Temperature Range
An extended temperature range beyond the stated data sheet limits is available upon request.
3D PDF
Outline and Mounting
