Outline and Mounting
dimensions in inches (mm)

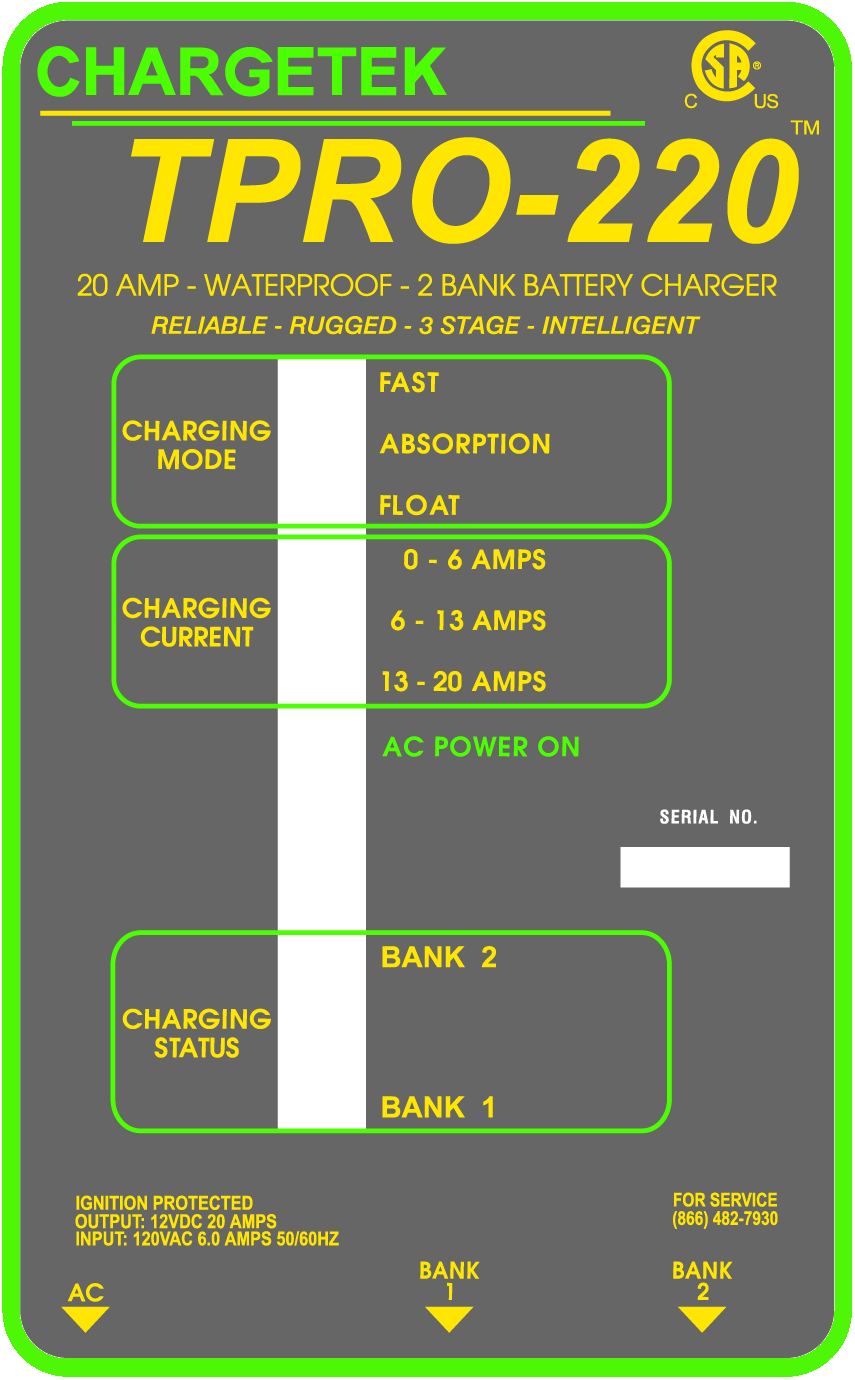

TPRO-220
TPRO-220 is a three stage lead based charger
Safety Agency Certification
Mode indicators
Low standby current
Reverse polarity protection
Over voltage and current protection
Rugged and waterproof
Fully encapsulated and hermetically sealed
Easily installed
Lead Free
Ignition Protection
Precise Voltage Regulation
Input transient protection
TPRO PRODUCTS (AC/DC - AGM/SLA)
Multi-Bank Waterproof Chargers
The TPRO multi-bank series is available in two and three bank configurations. Each bank is electrically isolated allowing for series and parallel configurations in 24V and 36V applications. Charge balancing of each bank is accomplished by sensing each bank independently and charging appropriately. With a wide operating temperature range and UL/CSA 1236 certification, this product is especially suited for high end industrial applications and severe environments. An LED display indicates charging and AC/DC status.
